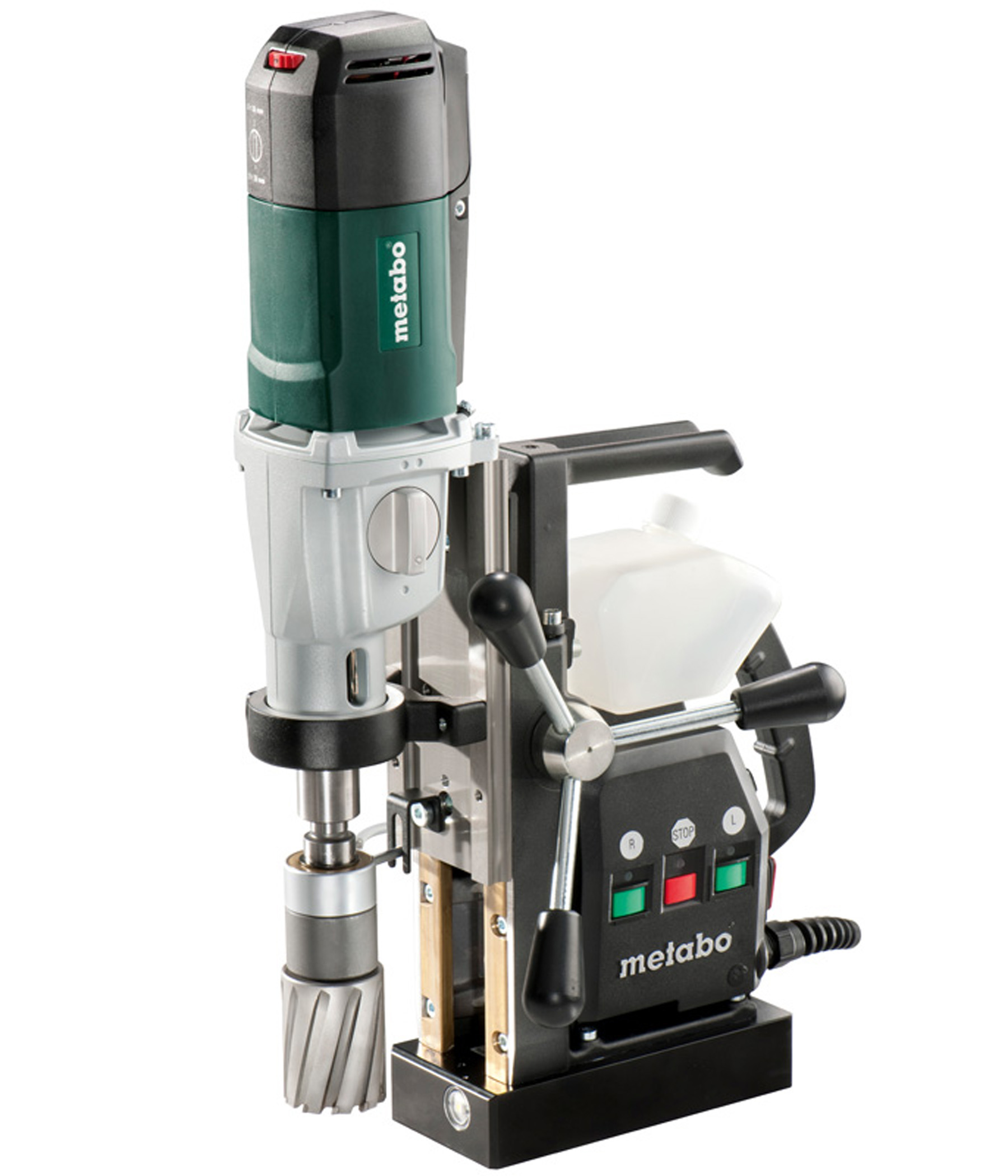

Maqnitik Drel Mag 50
İstehsalçı: Metabo
Characteristics
Rated Input Power
1200 W
Output Power
620 W
Max. drill-Ø with core drill
50 mm / 2 "
Max. drill-Ø with spiral drill
20 mm / 3/4 "
Maximum drilling depth
50 mm / 2 "
Thread cutting
M 16
No-Load Speed
100 - 250 / 200 - 450 /min
Revolutions at rated load
250 / 450 /min
Bit Retainer
Morse taper MK 2 / Weldon shaft 19 mm (3/4")
Weight
12.7 kg / 28 lbs
Cable Length
5 m / 16 ft
Torque
90 / 50 Nm // 797 / 443 in-lbs
- Maximum stroke
160 mm / 6 5/16 "
Max. magnetic holding force
12250 N
- Dimensions of the magnet base
90 x 190 mm / 3 9/16 x 7 1/2 "
- Carriage lowest position
457 mm / 18 "
- Carriage top-most position
610 mm / 24 "
Vibration
Drilling in metal
2.5 m/s²
Uncertainty of measurement K
1.5 m/s²
Noise emission
Sound Pressure Level
79 dB(A)
Sound power level (LwA)
92 dB(A)
Uncertainty of measurement K
3 dB(A)
