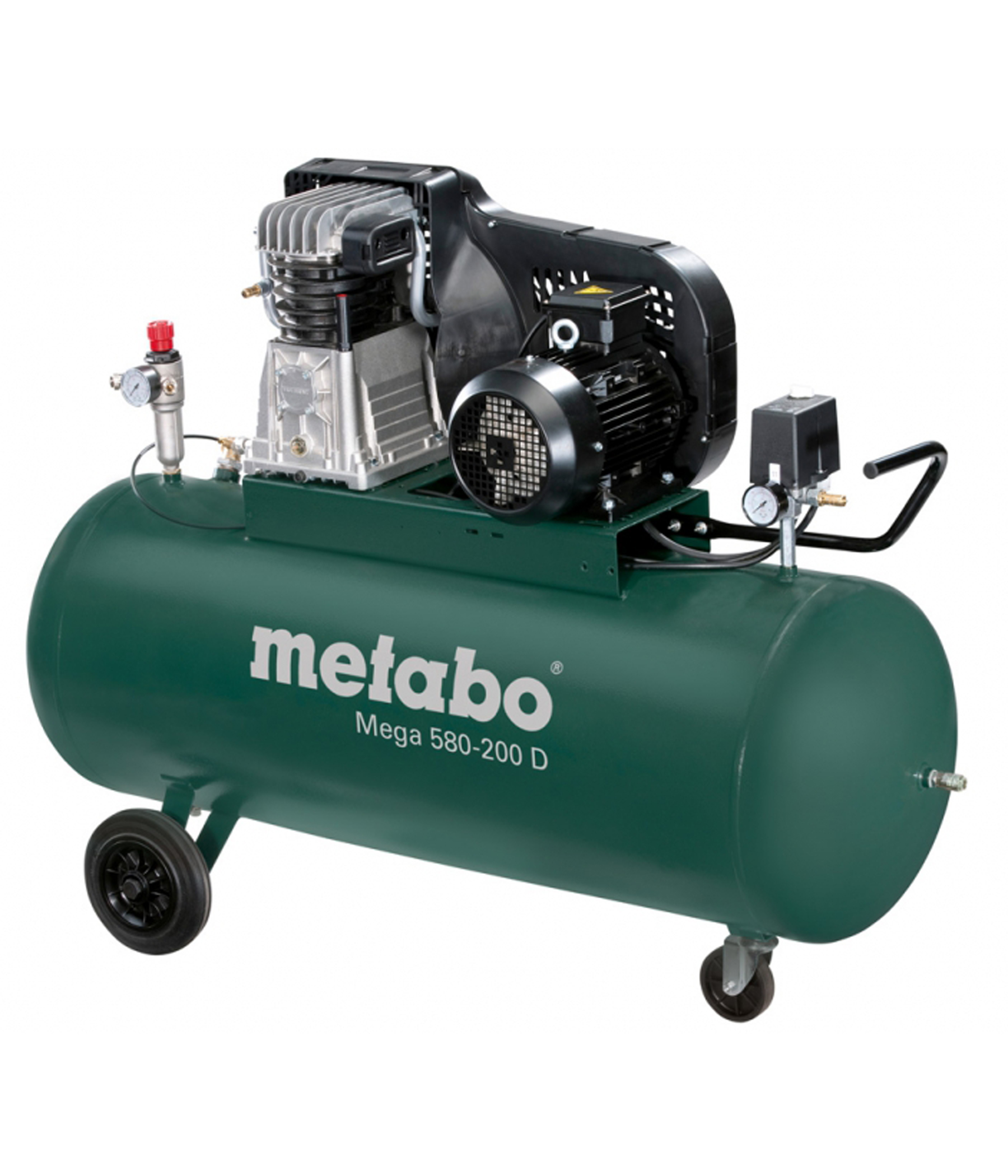

MEGA 580-200 D (601588000) COMPRESSOR MEGA

(380-415 V / 50 HZ); CARDBOARD BOX

Characteristics

Suction Rate

510 l/min / 135 gal/h

Filling Capacity

395 / 14 cfm

Effective delivery volume (at 80% max. pressure)

360 / 12.7 cfm

Maximum Pressure

11 bar / 160 psi

Rated Input Power

3 kW / 4 HP

Maximum speed

1400 rpm

Tank Capacity

200 l / 52.8 gal

Sound pressure level (LpA)

87 dB(A)

Dimensions

1430 x 550 x 1010 mm / 4.7 x 1.8 x 3.3 ft

Weight

136 kg / 300 lbs

Cable Length

1.5 m / 5 ft

Noise emission

Sound Pressure Level

87 dB(A)

Sound power level (LwA)

96 dB(A)
