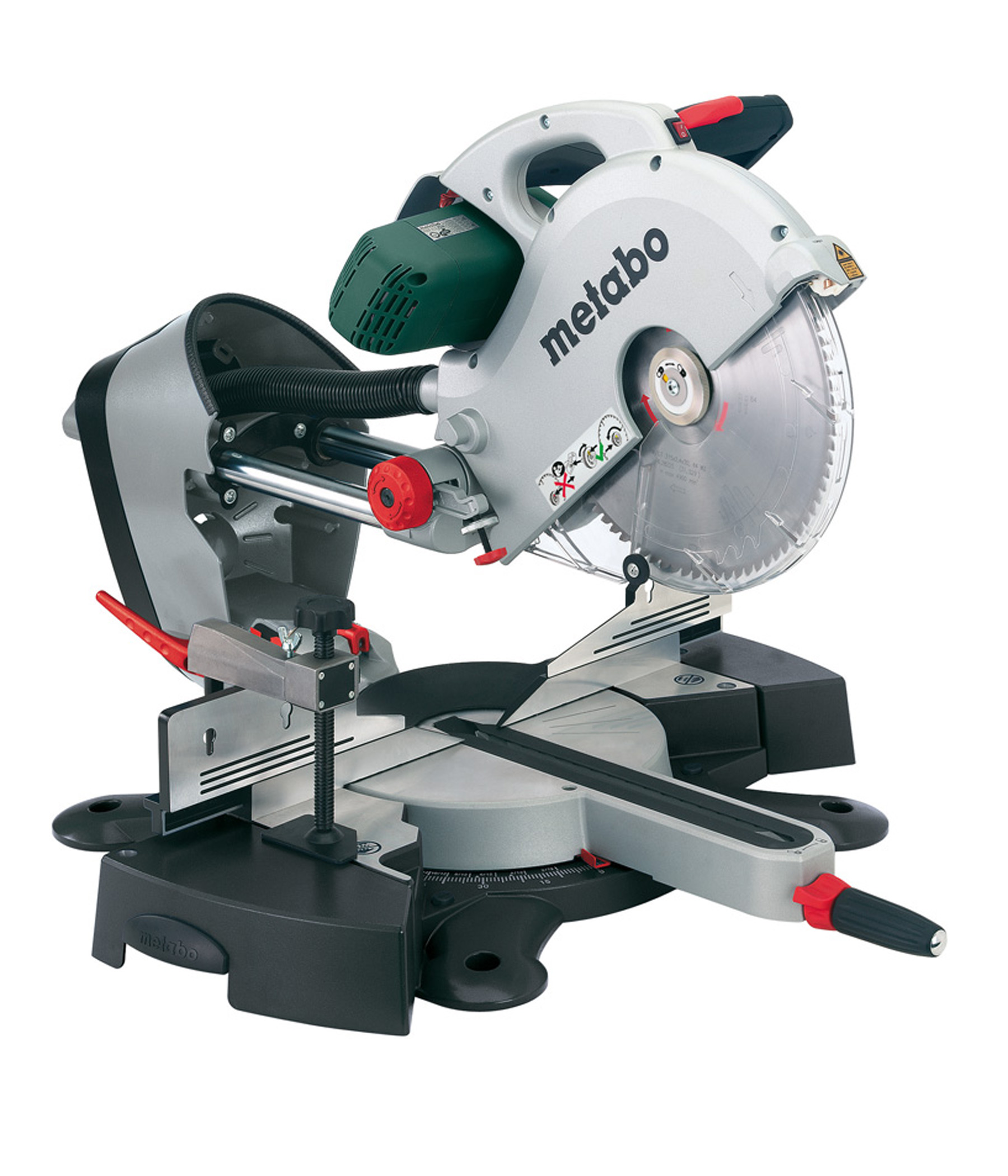

KGS 315 PLUS (0103150000) bucaqkəsən mişar
İstehsalçı: Metabo
Characteristics
Dimensions
950 x 765 x 660 mm / 3.2 x 2.5 x 2.2 ft
Maximum cutting width 90°/45°
320 / 223 mm // 12 9/16 / 8 3/4 "
Maximum cutting depth at 90°/45°
120 / 76 mm // 4 11/16 / 3 "
- Straight cut 90°/90°
320 x 120 mm / 12 9/16 x 4 11/16 "
- Double mitre 45°/45°
223 x 76 mm / 8 25/32 x 3 "
Turntable setting left/right
47 / 60 °
Saw blade tilt left/right
46 / 46 °
Saw Blade
315 x 30 mm / 12 3/8 x 1.181 "
Rated Input Power
2200 W
Rated input power S6 20%
2200 W
No-Load Speed
3100 - 4100 /min
Revolutions at Rated Load
4100 /min
Cutting Speed
51 - 68 m/s // 167 - 223 ft/s
Weight
26 kg / 57.3 lbs
Cable Length
2.1 m / 7 ft
